Galvanized Coil

Phone : +86 17661821896
Email : admin@jingyuansteel.com
Whatsapp :+86 17661821896

Categories: Galvanized, Galvanized Coil

Contact Now

Description

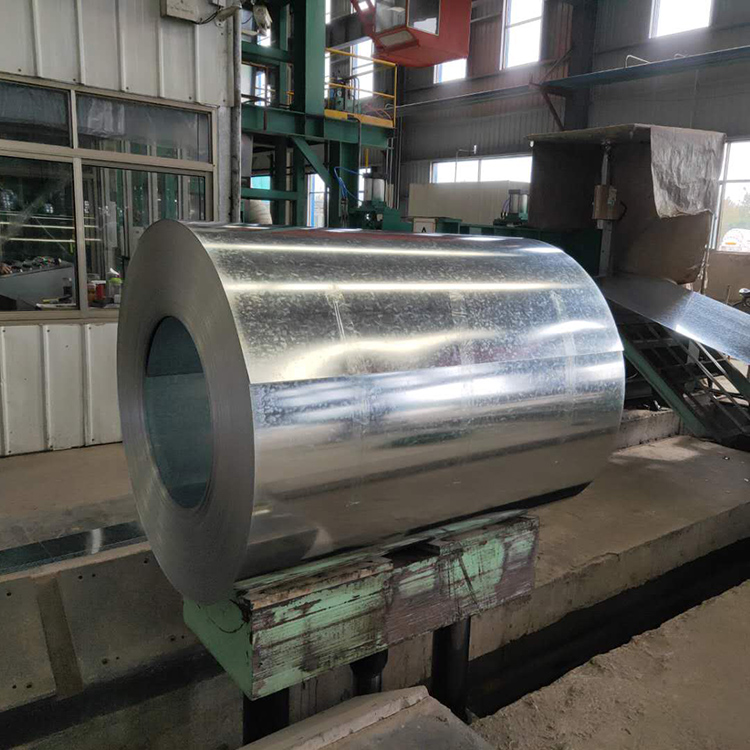

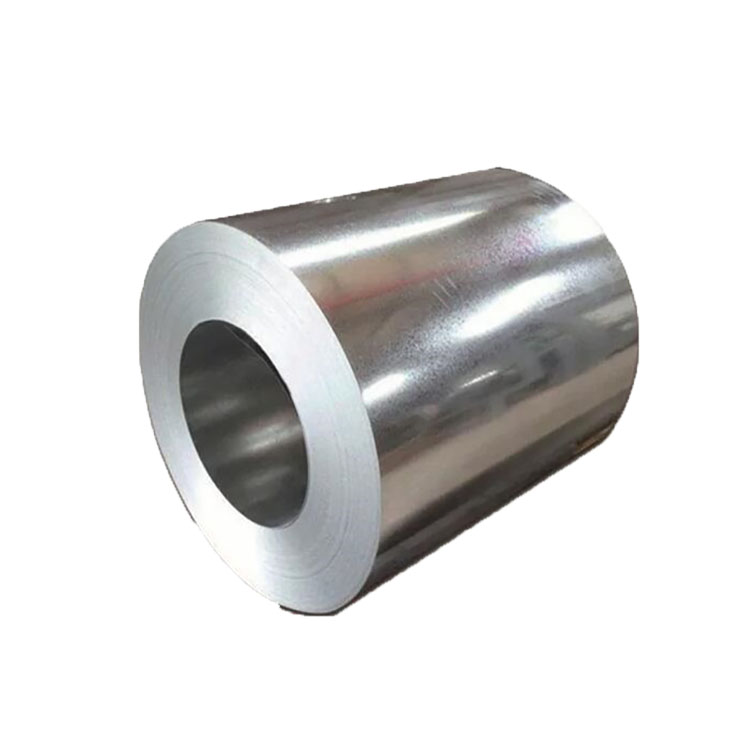

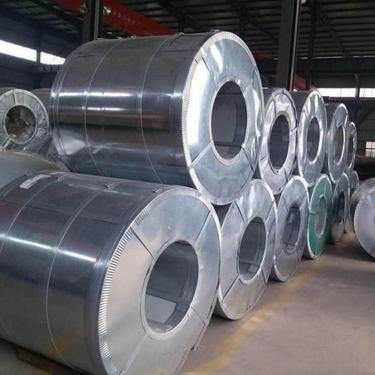

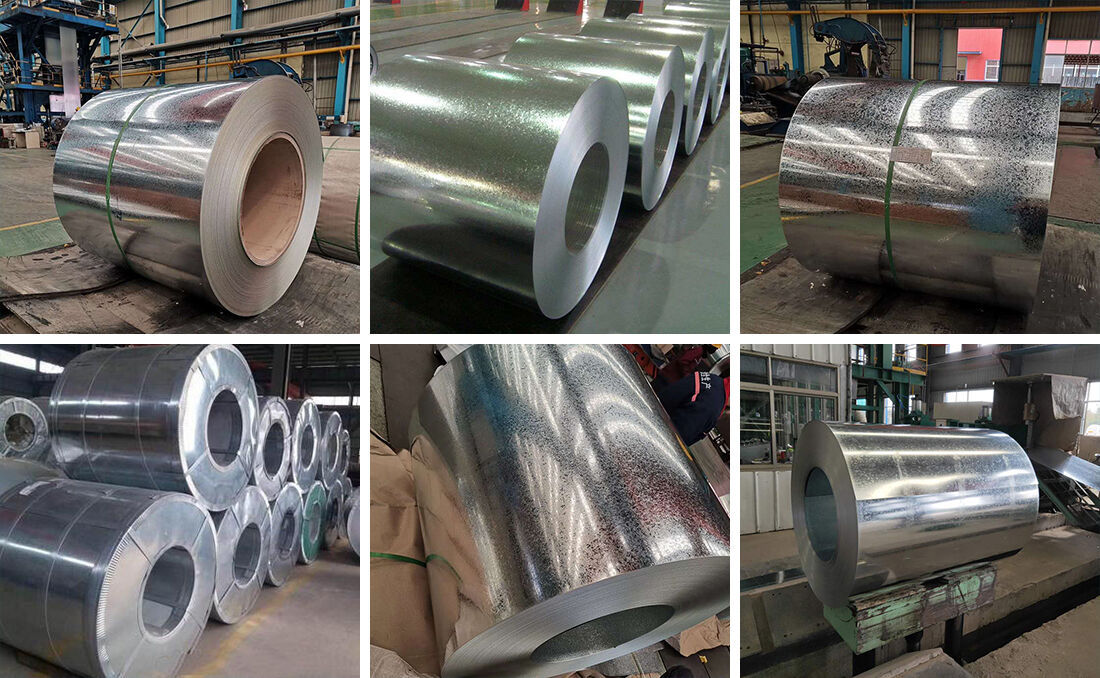

Product Description Hot Dipped Galvanized Steel Sheet in Coil (GI coil) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.

Technical Standard	EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,
	SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ
	CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type	Coil/Sheet/Plate/Strip
Thickness	0.12-6.00mm,or customer’s requirement
Width	600mm-1500mm, according to customer’s requirement
Type of Coating	Hot Dipped Galvanized Steel(HDGI) And Cold Dipped Galvanized Steel(CDGI)
Zinc Coating	30-275g/m2
Surface Treatment	Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)

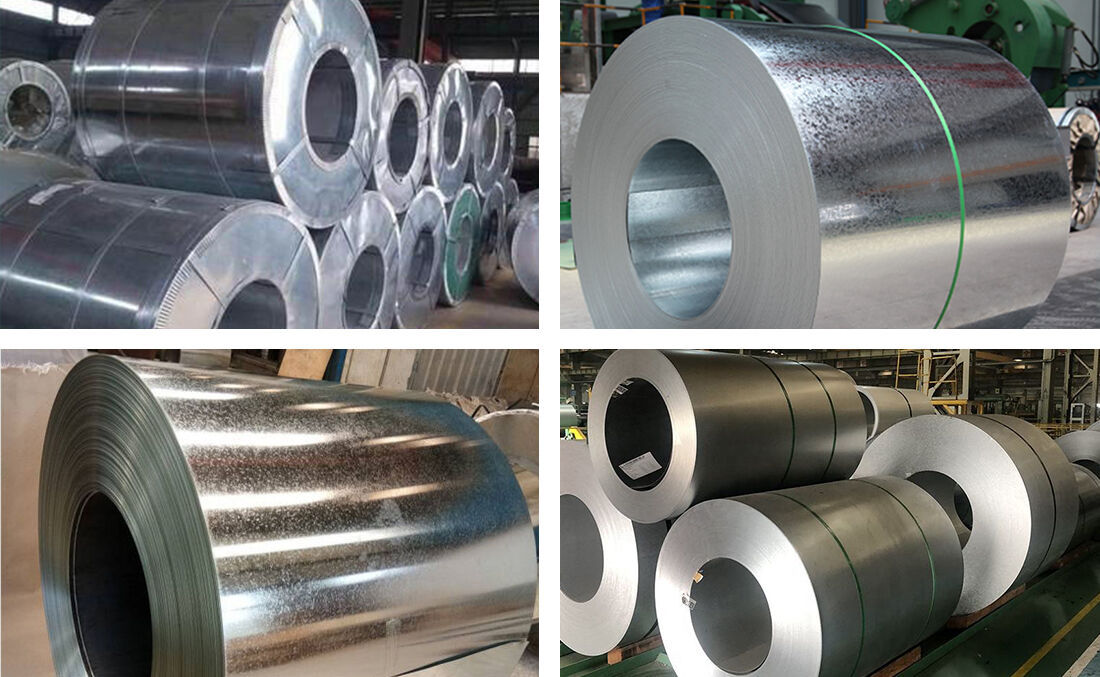

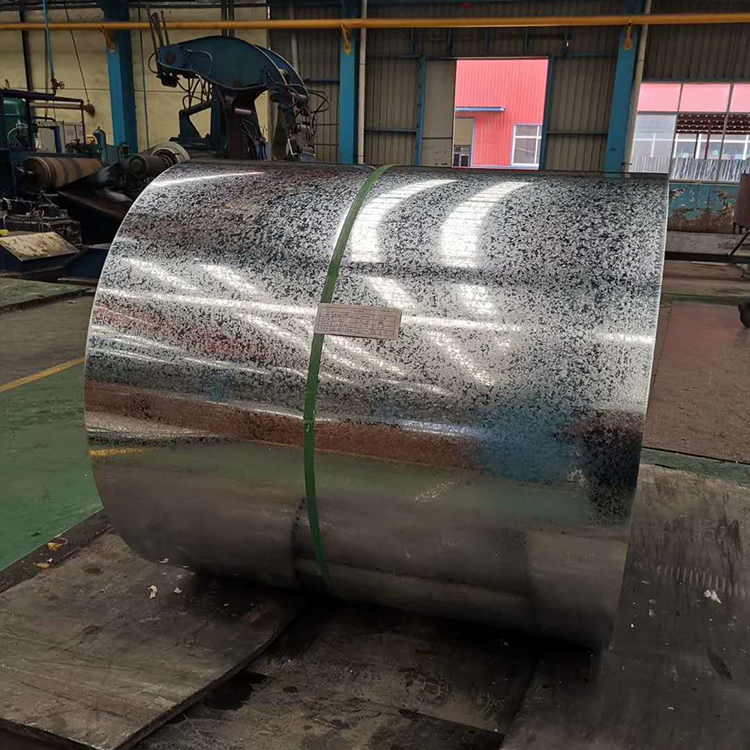

Surface Structure	Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality	Approved by SGS,ISO
Coil Weight	3-20 metric ton per coil

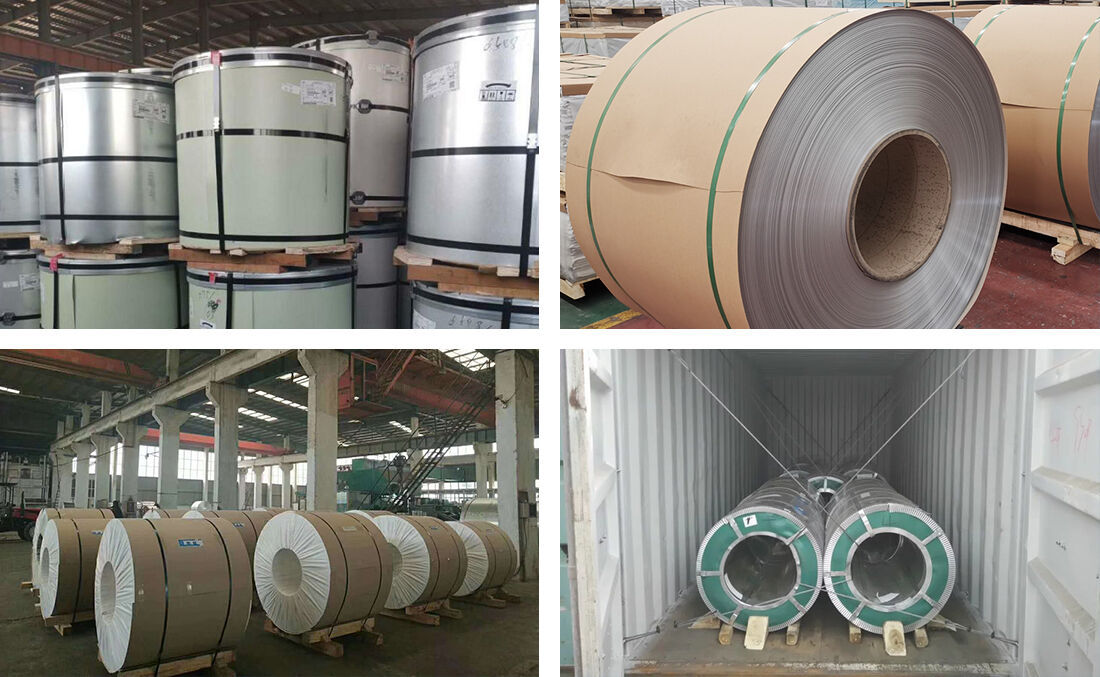

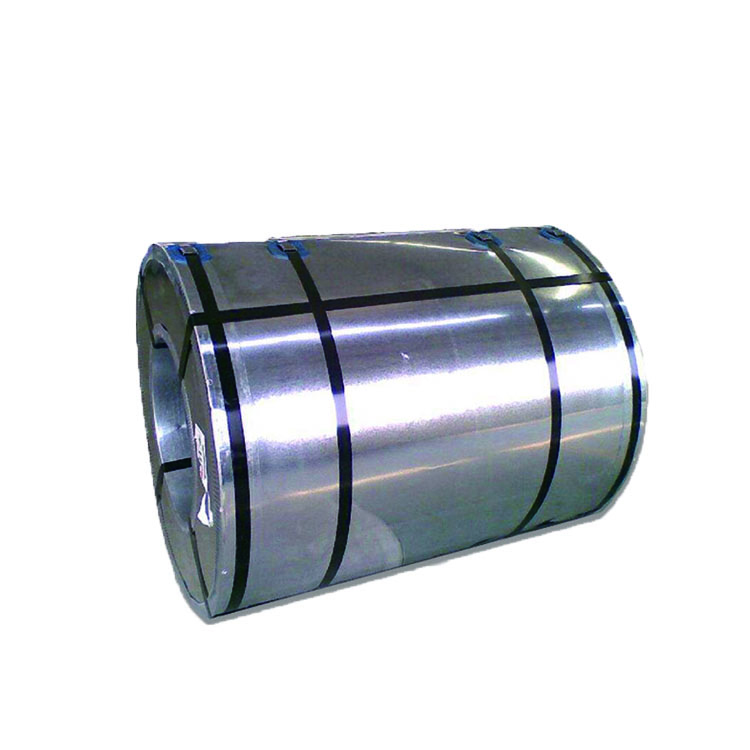

Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer’s requirement
Export market	Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc

Galvanizing steel production line with annual output of 200000 tons, which adopts the most advanced American GBNB and Germany’s Siemens electrical control systems. it can produce ZERO zinc spangle, small-zinc spangle and common zinc spangle etc.Thickness from 0.125 mm to 4.5mm, and width from 500 mm to 1250 mm, and zinc coating from 40 – 275 g/m2,surface passivation and oil-coating can be performed. In addition, the company introduces a slitting machine, which can meet the customers’ different requirements on the width. And Two roll-formed machines , which can produce wave roofing sheet and Trapezoidal corrugated sheet.

Q: Are you a manufacturing or trading company? A: We are a professional steel product manufacturer located in Shandong Province, China. Welcome to contact us and visit our factory before placing an order.

Q: How do you guarantee the quality? A: We can send free samples to you, we can accept third-party testing.We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods. Q: Can you OEM or ODM? A: Yes, we have a strong developing team. The products can be made according to your request. Q: Can I get free samples? A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days. Q: What is the MOQ? A: If you are scheduling to place a small quantity order or trial order, feel free to contact us, we can meet your requirements.
